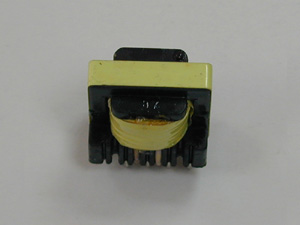

SWITCHING TRANSFORMER
EE SERIES
 |
 |
 |
 |
 |
 |
SPECIFICATION AND MECHANICAL PHYSICAL DIMENSIONS |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Part Number |
Power max (W) |
Freq. (KHz) |
Ae (mm2) |
AW (mm2) |
A (max) |
B (max) |
C (max) |
D (+/-0.5) |
E (+/-0.3) |
F (+/-0.3) |
G(OD) (+/-0.1) |
No. of Pins |
PTEE421VA |
257 |
50 |
182 |
201.3 |
47 |
38 |
53 |
27.5 |
5 |
- |
1 |
18 |
PTEE421HA |
257 |
50 |
182 |
204 |
47 |
46 |
44 |
33 |
5.08 |
7.62 |
1.2 |
12 |
PTEE421HB |
257 |
50 |
182 |
209 |
46 |
52 |
40 |
38.1 |
7.62 |
5.08 |
1 |
16 |
PTEE422VA |
290 |
50 |
235 |
209 |
45 |
46 |
48 |
32.5 |
5 |
- |
1 |
12 |
PTEE422VB |
290 |
50 |
235 |
209 |
46 |
40 |
49 |
27.5 |
5 |
- |
1 |
18 |
PTEE422HA |
290 |
50 |
235 |
204 |
46 |
52 |
47 |
38.1 |
7.62 |
5.08 |
1 |
16 |
PTEE550HA |
530 |
50 |
254 |
281.4 |
57 |
58 |
55 |
46 |
7.5 |
5 |
1 |
20 |
PTEE650HA |
767 |
50 |
535 |
415 |
68 |
68 |
65 |
45 |
5 |
- |
1 |
16 |
| VA and VB stand for Vertical Type, HA and HB stand for Horizontal Type | ||||||||||||
