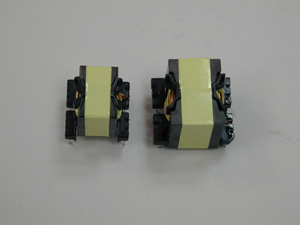

SWITCHING TRANSFORMER
PQ SERIES
 |
 |
 |
 |
 |
 |
SPECIFICATION AND MECHANICAL PHYSICAL DIMENSIONS |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Part Number |
Power max (W) |
Freq. (KHz) |
Ae (mm2) |
AW (mm2) |
A (max) |
B (max) |
C (max) |
D (+/-0.5) |
E (+/-0.3) |
F (+/-0.3) |
G(OD) (+/-0.1) |
No. of Pins |
PTPQ2016VA |
41 |
50 |
62 |
23.4 |
23 |
23 |
19 |
20.3 |
- |
5.08 |
0.6 |
14 |
PTPQ2020VA |
55 |
50 |
62 |
36.2 |
23 |
23 |
23 |
20 |
- |
5.08 |
0.6 |
14 |
PTPQ2620VA |
95 |
50 |
119 |
30.7 |
27 |
30 |
22 |
25.4 |
3.81 |
7.62 |
0.8 |
12 |
PTPQ2625VA |
107 |
50 |
118 |
47.7 |
27 |
30 |
30 |
25.4 |
3.81 |
7.62 |
0.8 |
12 |
PTPQ3220VA |
133 |
50 |
170 |
42.9 |
33 |
35 |
23 |
30.5 |
5.08 |
7.62 |
1 |
12 |
PTPQ3230VA |
186 |
50 |
161 |
95.3 |
33 |
35 |
33 |
30.5 |
5.08 |
7.62 |
1 |
12 |
PTPQ3535VA |
267 |
50 |
196 |
154.2 |
36 |
40 |
38 |
35 |
5.08 |
10.16 |
1 |
12 |
PTPQ4040VA |
385 |
50 |
201 |
240 |
41 |
43 |
43 |
38 |
5.08 |
15.24 |
1 |
12 |
PTPQ5050VA |
524 |
50 |
328 |
313 |
52 |
52 |
53 |
45.7 |
7.62 |
12.7 |
1 |
12 |
| VA stands for Vertical Type | ||||||||||||
