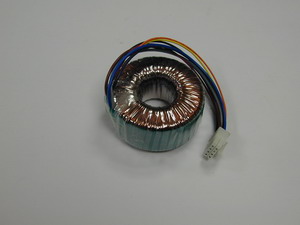

TOROIDAL TRANSFORMER
FEATURES
 |
 |
 |
 |
 |
 |
SPECIFICATION AND MECHANICAL PHYSICAL DIMENSIONS |
|||||||
|---|---|---|---|---|---|---|---|
Power Rating |
Dimensions |
Weight |
No.load |
Copper Losses |
|||
60HZVA |
50HZVA |
OD |
Height |
lb (kg) |
LossW |
W@68℉ |
W@248℉ |
inch (mm) |
inch (mm) |
(20℃) |
(120℃) |
||||
20 |
15 |
2.4 (63) |
1.3 (35) |
0.8 (0.38) |
0.3 |
3.3 |
4.3 |
40 |
30 |
2.9 (74) |
1.5 (39) |
1.3 (0.58) |
0.35 |
5.5 |
7.3 |
60 |
50 |
3.2 (82) |
1.5 (39) |
1.7 (0.78) |
0.57 |
7.6 |
10.3 |
100 |
80 |
4.0 (105) |
1.6 (40) |
2.8 (1.3) |
0.71 |
10.6 |
14 |
150 |
120 |
4.0 (105) |
1.9 (49) |
3.3 (1.5) |
1 |
13 |
18 |
200 |
160 |
4.7 (120) |
1.9 (49) |
4.0 (1.8) |
1.31 |
16 |
22 |
300 |
250 |
4.6 (116) |
2.5 (64) |
5.7 (2.6) |
1.8 |
14 |
19 |
360 |
300 |
4.6 (116) |
2.5 (64) |
6.6 (3.0) |
2.11 |
18 |
25 |
480 |
400 |
5.5 (138) |
2.3 (59) |
7.9 (3.6) |
2.5 |
22 |
30 |
600 |
500 |
5.5 (138) |
2.8 (72) |
9.9 (4.5) |
3.23 |
25 |
34 |
750 |
630 |
6.5 (165) |
2.6 (66) |
11.6 (5.3) |
3.9 |
29 |
40 |
960 |
800 |
6.5 (165) |
3.0 (76) |
14.3 (6.5) |
4.82 |
36 |
50 |
1200 |
990 |
6.5 (165) |
3.4 (86) |
16.9 (7.7) |
6.6 |
36 |
50 |
1600 |
1300 |
8.0 (202) |
2.6 (65) |
19.8 (9.0) |
5.71 |
47 |
65 |
1900 |
1600 |
8.0 (202) |
3.0 (75) |
24.2 (11) |
7.83 |
49 |
68 |
2300 |
1900 |
8.0 (202) |
3.3 (85) |
26.0 (11.8) |
8.6 |
51 |
71 |
2650 |
2200 |
8.9 (227) |
3.3 (85) |
28.6 (13) |
8.22 |
58 |
80 |
3000 |
2500 |
8.9 (227) |
3.5 (90) |
33.0 (15) |
9.83 |
62 |
86 |
