ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
3-24V DC |
|
Input Frequency |
47-63Hz |
Output Current |
1.5A(7.5VA max) |
|
Input Current |
0.3A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2%mVp-p max |
|
|
|
Efficiency |
>60% |

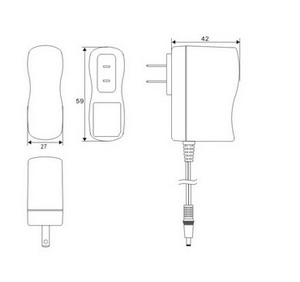

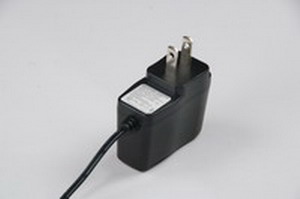

SWITCHING ADAPTOR
WALLMOUNT
07 SERIES
OUTPUT SPECIFICATIONS
SERIES NO. : UP07
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +35oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC |
MTBF |
40,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
FCC |
Safety Approvals |
UL/CUL |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950/EN60065 |
|
|
CEC |
|||
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
UP07-1350550 |
13.5V |
0.55A |
UP07-1400530 |
14.0V |
0.53A |
UP07-1450510 |
14.5V |
0.51A |
UP07-1500500 |
15.0V |
0.50A |
UP07-1550480 |
15.5V |
0.48A |
UP07-1600460 |
16.0V |
0.46A |
UP07-1650450 |
16.5V |
0.45A |
UP07-1700440 |
17.0V |
0.44A |
UP07-1750420 |
17.5V |
0.42A |
UP07-1800410 |
18.0V |
0.41A |
UP07-1850400 |
18.5V |
0.40A |
UP07-1900390 |
19.0V |
0.39A |
UP07-1950380 |
19.5V |
0.38A |
UP07-2000370 |
20.0V |
0.37A |
UP07-2050360 |
20.5V |
0.36A |
UP07-2100350 |
21.0V |
0.35A |
UP07-2150340 |
21.5V |
0.34A |
UP07-2200340 |
22.0V |
0.34A |
UP07-2250330 |
22.5V |
0.33A |
UP07-2300320 |
23.0V |
0.32A |
UP07-2350310 |
23.5V |
0.31A |
UP07-2400310 |
24.0V |
0.31A |
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
UP07-0301500 |
3.0V |
1.50A |
|
UP07-0331500 |
3.3V |
1.50A |
|
UP07-0351500 |
3.5V |
1.50A |
|
UP07-0401500 |
4.0V |
1.50A |
|
UP07-0451500 |
4.5V |
1.50A |
|
UP07-0501500 |
5.0V |
1.50A |
|
UP07-0551360 |
5.5V |
1.36A |
|
UP07-0601250 |
6.0V |
1.25A |
|
UP07-0651150 |
6.5V |
1.15A |
|
UP07-0701070 |
7.0V |
1.07A |
|
UP07-0751000 |
7.5V |
1.00A |
|
UP07-0800930 |
8.0V |
0.93A |
|
UP07-0850880 |
8.5V |
0.88A |
|
UP07-0900830 |
9.0V |
0.83A |
|
UP07-0950780 |
9.5V |
0.78A |
|
UP07-1000750 |
10.0V |
0.75A |
|
UP07-1050710 |
10.5V |
0.71A |
|
UP07-1100680 |
11.0V |
0.68A |
|
UP07-1150650 |
11.5V |
0.65A |
|
UP07-1200620 |
12.0V |
0.62A |
|
UP07-1250600 |
12.5V |
0.60A |
|
UP07-1300570 |
13.0V |
0.57A |
 |
 |
 |
 |
 |
 |
