ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
3-30V DC |
|
Input Frequency |
47-63Hz |
Output Current |
1.5A(9.3VA max) |
|
Input Current |
0.3A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2%mVp-p max |
|
|
|
Efficiency |
>70% |
SWITCHING ADAPTOR
WALLMOUNT
08 SERIES
OUTPUT SPECIFICATIONS
SERIES NO. : UP08

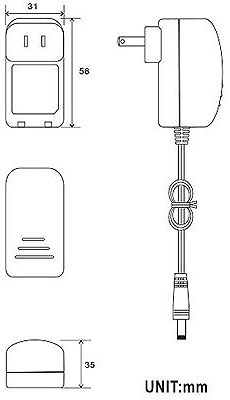

D TYPE

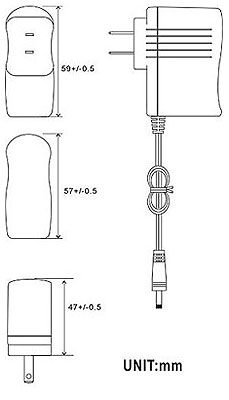

H TYPE
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC |
MTBF |
40,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
FCC |
Safety Approvals |
UL/CUL |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950 |
|
|
CEC |
|||
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
UP08-1650560 |
16.5V |
0.56A |
|
UP08-1700540 |
17.0V |
0.54A |
|
UP08-1750530 |
17.5V |
0.53A |
|
UP08-1800510 |
18.0V |
0.51A |
|
UP08-1850500 |
18.5V |
0.50A |
|
UP08-1900480 |
19.0V |
0.48A |
|
UP08-1950470 |
19.5V |
0.47A |
|
UP08-2000460 |
20.0V |
0.46A |
|
UP08-2050450 |
20.5V |
0.45A |
|
UP08-2100440 |
21.0V |
0.44A |
|
UP08-2150430 |
21.5V |
0.43A |
|
UP08-2200420 |
22.0V |
0.42A |
|
UP08-2250410 |
22.5V |
0.41A |
|
UP08-2300400 |
23.0V |
0.40A |
|
UP08-2350390 |
23.5V |
0.39A |
|
UP08-2400380 |
24.0V |
0.38A |
|
UP08-2450370 |
24.5V |
0.37A |
|
UP08-2500370 |
25.0V |
0.37A |
|
UP08-2550360 |
25.5V |
0.36A |
|
UP08-2600350 |
26.0V |
0.35A |
|
UP08-2650350 |
26.5V |
0.35A |
|
UP08-2700340 |
27.0V |
0.34A |
|
UP08-2750330 |
27.5V |
0.33A |
|
UP08-2800330 |
28.0V |
0.33A |
|
UP08-2850320 |
28.5V |
0.32A |
|
UP08-2900320 |
29.0V |
0.32A |
|
UP08-2950310 |
29.5V |
0.31A |
|
UP08-3000310 |
30.0V |
0.31A |
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
UP08-0301500 |
3.0V |
1.50A |
|
UP08-0331500 |
3.3V |
1.50A |
|
UP08-0351500 |
3.5V |
1.50A |
|
UP08-0401500 |
4.0V |
1.50A |
|
UP08-0451500 |
4.5V |
1.50A |
|
UP08-0501500 |
5.0V |
1.50A |
|
UP08-0551450 |
5.5V |
1.45A |
|
UP08-0601330 |
6.0V |
1.33A |
|
UP08-0651230 |
6.5V |
1.23A |
|
UP08-0701140 |
7.0V |
1.14A |
|
UP08-0751060 |
7.5V |
1.06A |
|
UP08-0801000 |
8.0V |
1.00A |
|
UP08-0850940 |
8.5V |
0.94A |
|
UP08-0901030 |
9.0V |
1.03A |
|
UP08-0950970 |
9.5V |
0.97A |
|
UP08-1000930 |
10.0V |
0.93A |
|
UP08-1050880 |
10.5V |
0.88A |
|
UP08-1100840 |
11.0V |
0.84A |
|
UP08-1150800 |
11.5V |
0.80A |
|
UP08-1200770 |
12.0V |
0.77A |
|
UP08-1250740 |
12.5V |
0.74A |
|
UP08-1300710 |
13.0V |
0.71A |
|
UP08-1350680 |
13.5V |
0.68A |
|
UP08-1400660 |
14.0V |
0.66A |
|
UP08-1450640 |
14.5V |
0.64A |
|
UP08-1500620 |
15.0V |
0.62A |
|
UP08-1550600 |
15.5V |
0.60A |
|
UP08-1600580 |
16.0V |
0.58A |
 |
 |
 |
 |
 |
 |
