ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
3-30V DC |
|
Input Frequency |
47-63Hz |
Output Current |
1.5A(9.3VA max) |
|
Input Current |
0.3A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2%mVp-p max |
|
|
|
Efficiency |
>70% |

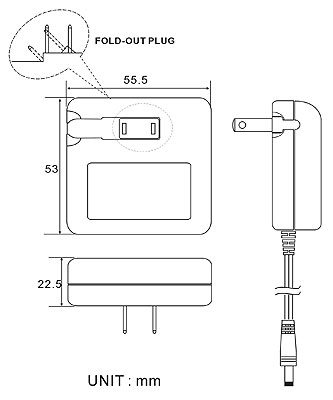

SWITCHING ADAPTOR
WALLMOUNT
08 SERIES
OUTPUT SPECIFICATIONS
SERIES NO. : UP08F
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC |
MTBF |
40,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
FCC |
Safety Approvals |
UL/CUL |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950 |
|
|
CEC |
|||
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
UP08F-1650300 |
16.5V |
0.56A |
|
UP08F-1700290 |
17.0V |
0.54A |
|
UP08F-1750280 |
17.5V |
0.53A |
|
UP08F-1800270 |
18.0V |
0.51A |
|
UP08F-1850270 |
18.5V |
0.50A |
|
UP08F-1900260 |
19.0V |
0.48A |
|
UP08F-1950250 |
19.5V |
0.47A |
|
UP08F-2000250 |
20.0V |
0.46A |
|
UP08F-2050240 |
20.5V |
0.45A |
|
UP08F-2100230 |
21.0V |
0.44A |
|
UP08F-2150230 |
21.5V |
0.43A |
|
UP08F-2200220 |
22.0V |
0.42A |
|
UP08F-2250220 |
22.5V |
0.41A |
|
UP08F-2300210 |
23.0V |
0.40A |
|
UP08F-2350210 |
23.5V |
0.39A |
|
UP08F-2400200 |
24.0V |
0.38A |
|
UP08F-2450200 |
24.5V |
0.37A |
|
UP08F-2500200 |
25.0V |
0.37A |
|
UP08F-2550190 |
25.5V |
0.36A |
|
UP08F-2600190 |
26.0V |
0.35A |
|
UP08F-2650180 |
26.5V |
0.35A |
|
UP08F-2700180 |
27.0V |
0.34A |
|
UP08F-2750180 |
27.5V |
0.33A |
|
UP08F-2800170 |
28.0V |
0.33A |
|
UP08F-2850170 |
28.5V |
0.32A |
|
UP08F-2900170 |
29.0V |
0.32A |
|
UP08F-2950160 |
29.5V |
0.31A |
|
UP08F-3000160 |
30.0V |
0.31A |
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
UP08F-0301000 |
3.0V |
1.50A |
|
UP08F-0330900 |
3.3V |
1.50A |
|
UP08F-0350850 |
3.5V |
1.50A |
|
UP08F-0400750 |
4.0V |
1.50A |
|
UP08F-0450660 |
4.5V |
1.50A |
|
UP08F-0501000 |
5.0V |
1.50A |
|
UP08F-0550900 |
5.5V |
1.45A |
|
UP08F-0600830 |
6.0V |
1.33A |
|
UP08F-0650760 |
6.5V |
0.76A |
|
UP08F-0700710 |
7.0V |
1.23A |
|
UP08F-0750660 |
7.5V |
1.06A |
|
UP08F-0800620 |
8.0V |
1.00A |
|
UP08F-0850580 |
8.5V |
0.94A |
|
UP08F-0900550 |
9.0V |
1.03A |
|
UP08F-0950520 |
9.5V |
0.97A |
|
UP08F-1000500 |
10.0V |
0.93A |
|
UP08F-1050470 |
10.5V |
0.88A |
|
UP08F-1100450 |
11.0V |
0.84A |
|
UP08F-1150430 |
11.5V |
0.80A |
|
UP08F-1200410 |
12.0V |
0.77A |
|
UP08F-1250400 |
12.5V |
0.74A |
|
UP08F-1300380 |
13.0V |
0.71A |
|
UP08F-1350370 |
13.5V |
0.68A |
|
UP08F-1400350 |
14.0V |
0.66A |
|
UP08F-1450340 |
14.5V |
0.64A |
|
UP08F-1500330 |
15.0V |
0.62A |
|
UP08F-1550320 |
15.5V |
0.60A |
|
UP08F-1600310 |
16.0V |
0.58A |
 |
 |
 |
 |
 |
 |
