OUTPUT SPECIFICATIONS
DC/DC CONVERTER
WIDE INPUT RANGE - 2:1
WG SERIES
|
Mechanical Characteristics |
|
|---|---|
|
Length:76.20mm |
Height: 20.83mm |
|
Width: 66.04mm |
Weight: 180g Typ |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Capacitance |
2500pF max |
|
Storage Temperature |
-55oC to +100oC |
Switching Frequency |
100 KHz min |
|
Humidity |
95% max |
MTBF |
>350,000 Hours at 25oC |
|
Cooling |
Free-Air Convection |
Case Material |
Six-Sided Shield Case |
|
Efficiency |
78% min |
Potting Material |
Epoxy(UL94-V0) |
|
Isolation Voltage |
1000 VDC min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
Radiated Emissions |
EN55022 Class A |
|
2:1 60W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WGD-1212 |
9-18 |
+/-12 |
+/-2500 |
6200 |
50 |
81 |
1000 |
|
WGD-1215 |
9-18 |
+/-15 |
+/-2000 |
6200 |
50 |
81 |
1000 |
|
WGD-2412 |
18-36 |
+/-12 |
+/-2500 |
3100 |
30 |
81 |
1000 |
|
WGD-2415 |
18-36 |
+/-15 |
+/-2000 |
3100 |
30 |
81 |
1000 |
|
WGD-4812 |
36-72 |
+/-12 |
+/-2500 |
1550 |
20 |
81 |
1000 |
|
WGD-4815 |
36-72 |
+/-15 |
+/-2000 |
1550 |
20 |
81 |
1000 |
|
2:1 60W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WGS-1212 |
9-18 |
12 |
5000 |
6250 |
50 |
80 |
1000 |
|
WGS-1215 |
9-18 |
15 |
4000 |
6200 |
50 |
81 |
1000 |
|
WGS-1224 |
9-18 |
24 |
2500 |
6200 |
50 |
81 |
1000 |
|
WGS-2412 |
18-36 |
12 |
5000 |
3125 |
30 |
80 |
1000 |
|
WGS-2415 |
18-36 |
15 |
4000 |
3100 |
30 |
81 |
1000 |
|
WGS-2448 |
18-36 |
48 |
1110 |
2700 |
30 |
81 |
1000 |
|
WGS-4812 |
36-72 |
12 |
5000 |
1565 |
20 |
80 |
1000 |
|
WGS-4815 |
36-72 |
15 |
4000 |
1550 |
20 |
81 |
1000 |
|
ELECTRICAL SPECIFICATIONS |
||||||
|---|---|---|---|---|---|---|
|
Input Voltage Range |
2:1, 4:1 Input Range |
Load Regulation |
|
|||
|
Input Filter |
Pi Network |
|
Single |
+/-0.2% max |
||
|
Protection |
Fuse Recommended |
Dual |
+/-0.2% max |
|||
|
Voltage Setpoint Accuracy |
|
Minimum Load |
10% of Full Load |
|||
|
|
Single Output |
+/-2% max |
Short Circuit Protection |
Continuous |
||
|
Dual Output |
+/-2% max |
Short Circuit Restart |
Automatic |
|||
|
Over voltage Protection |
Built-in |
External Trim Adj, Range |
+/-10% |
|||
|
Temperature Coefficient |
+/-0.03%/°C |
Overload Protection |
150% Typ |
|||
|
Ripple & Noise(20MHz BW) |
150mVp-p max |
Transient Response |
500uS max |
|||
|
Line Regulation |
|
|
|
|||
|
|
Single |
+/-0.5% max |
||||
|
Dual |
+/-0.5% max |
|||||

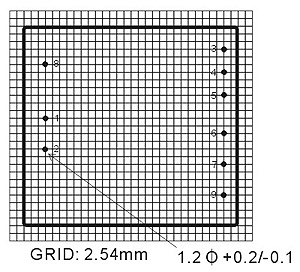

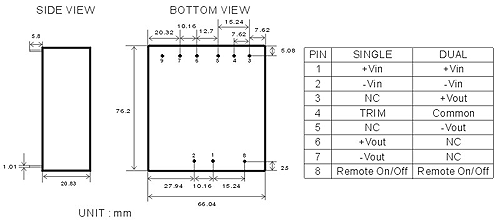

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS

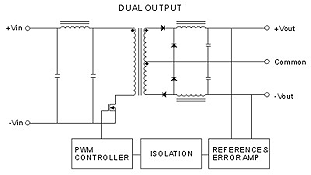

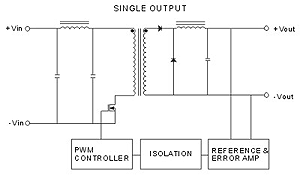

SIMPLIFIED SCHEMATIC
 |
 |
 |
 |
 |
 |
