ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
3.3-24V DC |
|
Input Frequency |
47-63Hz |
Output Current |
2.2A(12VA max) |
|
Input Current |
0.5A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2%mVp-p max |
|
|
|
Efficiency |
>70% |

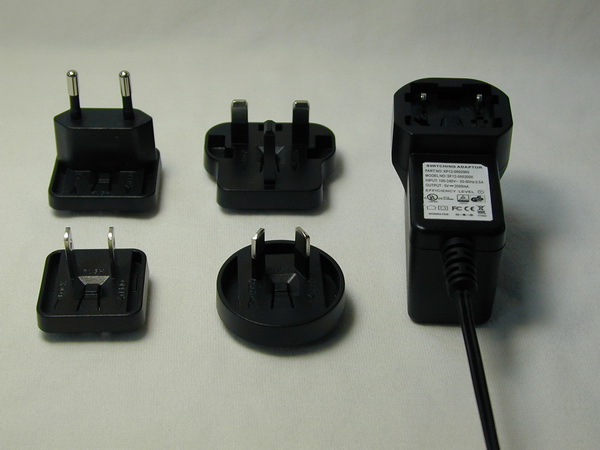

SWITCHING ADAPTOR
WALLMOUNT
12 SERIES
OUTPUT SPECIFICATIONS
SERIES NO. :XP12
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC |
MTBF |
40,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
EMC/C-tick/FCC |
Safety Approvals |
UL/CUL/GS/SAA/CE/CB |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950/AS/ |
|
|
CEC/ErP/MEPS |
|||
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
XP12-1400850 |
14.0V |
0.85A |
XP12-1450820 |
14.5V |
0.82A |
XP12-1500800 |
15.0V |
0.80A |
XP12-1550770 |
15.5V |
0.77A |
XP12-1600750 |
16.0V |
0.75A |
XP12-1650720 |
16.5V |
0.72A |
XP12-1700700 |
17.0V |
0.70A |
XP12-1750680 |
17.5V |
0.68A |
XP12-1800660 |
18.0V |
0.66A |
XP12-1850640 |
18.5V |
0.64A |
XP12-1900630 |
19.0V |
0.63A |
XP12-1950610 |
19.5V |
0.61A |
XP12-2000600 |
20.0V |
0.60A |
XP12-2050580 |
20.5V |
0.58A |
XP12-2050470 |
21.0V |
0.57A |
XP12-2150550 |
21.5V |
0.55A |
XP12-2200540 |
22.0V |
0.54A |
XP12-2250530 |
22.5V |
0.53A |
XP12-2300530 |
23.0V |
0.53A |
XP12-2350510 |
23.5V |
0.51A |
XP12-2400500 |
24.0V |
0.50A |
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
XP12-0332200 |
3.3V |
2.20A |
XP12-0352200 |
3.5V |
2.20A |
XP12-0402200 |
4.0V |
2.20A |
XP12-0452200 |
4.5V |
2.20A |
XP12-0502200 |
5.0V |
2.20A |
XP12-0552000 |
5.5V |
2.00A |
XP12-0601830 |
6.0V |
1.83A |
XP12-0651690 |
6.5V |
1.69A |
XP12-0701570 |
7.0V |
1.57A |
XP12-0751600 |
7.5V |
1.60A |
XP12-0801500 |
8.0V |
1.50A |
XP12-0851410 |
8.5V |
1.41A |
XP12-0901330 |
9.0V |
1.33A |
XP12-0951260 |
9.5V |
1.26A |
XP12-1000120 |
10.0V |
1.20A |
XP12-1051140 |
10.5V |
1.14A |
XP12-1101090 |
11.0V |
1.09A |
XP12-1151040 |
11.5V |
1.04A |
XP12-1201000 |
12.0V |
1.00A |
XP12-1250960 |
12.5V |
0.96A |
XP12-1300920 |
13.0V |
0.92A |
XP12-1350880 |
13.5V |
0.88A |
 |
 |
 |
 |
 |
 |
