ELECTRICAL SPECIFICATIONS

Input

Output

Input Voltage Range

90-264V AC

Output Voltage

10 - 48V DC

Input Frequency

47-63Hz

Output Current

7A(90VA max)

Input Current

2.0A(max)

Output Tolerance

5%





Ripple & Noise

2% mV p-p max





Efficiency

>80%

00title405a02

OUTPUT SPECIFICATIONS
SERIES NO. : XP90

35-UL02
35-SAA02
35-C-tick02
35-CE02
35-CB04
35-GS05
00title405a

SWITCHING  ADAPTOR
WALLMOUNT

90 SERIES

35-FCC02

PART NO.

OUTPUT

VOLT

CURRENT (max)

XP90-1007000

10.0V

7.00A

XP90-1057000

10.5V

7.00A

XP90-1107000

11.0V

7.00A

XP90-1157000

11.5V

7.00A

XP90-1207000

12.0V

7.00A

XP90-1256720

12.5V

6.72A

XP90-1306460

13.0V

6.46A

XP90-1356220

13.5V

6.22A

XP90-1406000

14.0V

6.00A

XP90-1455790

14.5V

5.79A

XP90-1505600

15.0V

5.60A

XP90-1555600

15.5V

5.60A

XP90-1605600

16.0V

5.60A

XP90-1655450

16.5V

5.45A

XP90-1705290

17.0V

5.29A

XP90-1755140

17.5V

5.14A

XP90-1805000

18.0V

5.00A

XP90-1854860

18.5V

4.86A

XP90-1904730

19.0V

4.73A

XP90-1954610

19.5V

4.61A

XP90-2004500

20.0V

4.50A

XP90-2054390

20.5V

4.39A

XP90-2104280

21.0V

4.28A

XP90-2154180

21.5V

4.18A

XP90-2204090

22.0V

4.09A

XP90-2254000

22.5V

4.00A

XP90-2303910

23.0V

3.91A

XP90-2353820

23.5V

3.82A

XP90-2403750

24.0V

3.75A

XP90-2453670

24.5V

3.67A

XP90-2503600

25.0V

3.60A

XP90-2553520

25.5V

3.52A

XP90-2603460

26.0V

3.46A

XP90-2653390

26.5V

3.39A

XP90-2703330

27.0V

3.33A

XP90-2753270

27.5V

3.27A

XP90-2803210

28.0V

3.21A

XP90-2853150

28.5V

3.15A

PART NO.

OUTPUT

VOLT

CURRENT (max)

XP90-2903100

29.0V

3.10A

XP90-2953050

29.5V

3.05A

XP90-3003000

30.0V

3.00A

XP90-3052950

30.5V

2.95A

XP90-3102900

31.0V

2.90A

XP90-3152850

31.5V

2.85A

XP90-3202810

32.0V

2.81A

XP90-3252760

32.5V

2.76A

XP90-3302720

33.0V

2.72A

XP90-3352680

33.5V

2.68A

XP90-3402640

34.0V

2.64A

XP90-3452600

34.5V

2.60A

XP90-3502570

35.0V

2.57A

XP90-3552530

35.5V

2.53A

XP90-3602500

36.0V

2.50A

XP90-3652460

36.5V

2.46A

XP90-3702430

37.0V

2.43A

XP90-3752400

37.5V

2.40A

XP90-3802360

38.0V

2.36A

XP90-3852330

38.5V

2.33A

XP90-3902300

39.0V

2.30A

XP90-3952270

39.5V

2.27A

XP90-4002250

40.0V

2.25A

XP90-4052220

40.5V

2.22A

XP90-4102190

41.0V

2.19A

XP90-4152160

41.5V

2.16A

XP90-4202140

42.0V

2.14A

XP90-4252110

42.5V

2.11A

XP90-4302090

43.0V

2.09A

XP90-4352060

43.5V

2.06A

XP90-4402040

44.0V

2.04A

XP90-4452020

44.5V

2.02A

XP90-4502000

45.0V

2.00A

XP90-4551970

45.5V

1.97A

XP90-4601950

46.0V

1.95A

XP90-4651930

46.5V

1.93A

XP90-4701910

47.0V

1.91A

XP90-4751890

47.5V

1.89A

XP90-4801870

48.0V

1.87A

XP90-Product

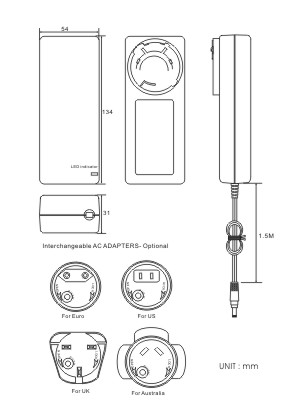

XP90-Dimension

GENERAL SPECIFICATIONS

Temperatures

Humidity

Operating Temperatures

0 to +40oC

Operating Humidity

15 to 95% RH

Storage Temperatures

-20 to +85oC

Storage Humidity

5 to 95% RH

Hi-Pot Test

MTBF

Hi-Pot

3000V AC/10mA/3S

MTBF

30,000Hours at 25oC

EMISSION

SAFETY

EMI/EMC

EMC/C-tick/FCC

Safety Approvals

UL/CUL/GS/SAA/CE/CB

GREEN POWER

Safety Compliant

UL 60950/EN 60950/AS/
NZS 60950/IEC 60950

CEC/ErP/MEPS
