GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
PSE |
J 60950 |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
100V AC |
Output Voltage |
1-30V DC |
|
Input Frequency |
50/60Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.2-4A |
||
|
Output Watt |
19.5VA max |
||

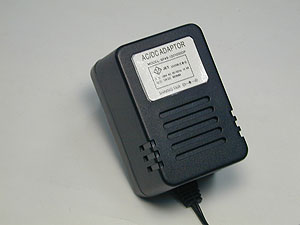

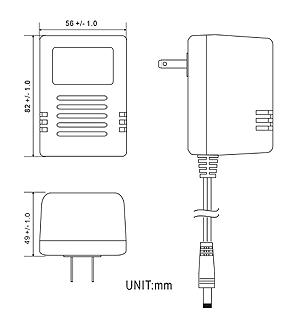

LINEAR ADAPTOR
WALLMOUNT
EI 48 AC TO DC ADAPTOR
INPUT:100V AC 50/60 Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-16V |
17-22V |
23-28V |
29-30V |
|---|
|
17V |
18V |
19V |
20V |
21V |
22V |
|
|
1.0A |
SF48-1701000DP |
SF48-1801000DP |
|
|
|
|
|
0.9A |
SF48-1700900DP |
SF48-1800900DP |
SF48-1900900DP |
SF48-2000900DP |
|
|
|
0.8A |
SF48-1700800DP |
SF48-1800800DP |
SF48-1900800DP |
SF48-2000800DP |
SF48-2100800DP |
SF48-2200800DP |
|
0.7A |
SF48-1700700DP |
SF48-1800700DP |
SF48-1900700DP |
SF48-2000700DP |
SF48-2100700DP |
SF48-2200700DP |
|
0.6A |
SF48-1700600DP |
SF48-1800600DP |
SF48-1900600DP |
SF48-2000600DP |
SF48-2100600DP |
SF48-2200600DP |
|
0.5A |
SF48-1700500DP |
SF48-1800500DP |
SF48-1900500DP |
SF48-2000500DP |
SF48-2100500DP |
SF48-2200500DP |
|
0.4A |
SF48-1700400DP |
SF48-1800400DP |
SF48-1900400DP |
SF48-2000400DP |
SF48-2100400DP |
SF48-2200400DP |
|
0.3A |
SF48-1700300DP |
SF48-1800300DP |
SF48-1900300DP |
SF48-2000300DP |
SF48-2100300DP |
SF48-2200300DP |
|
0.2A |
|
|
|
SF48-2000200DP |
SF48-2100200DP |
SF48-2200200DP |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
1.5A |
SF48-1001500DP |
SF48-1051500DP |
|
|
|
|
|
1.4A |
SF48-1001400DP |
SF48-1051400DP |
SF48-1101400DP |
SF48-1151400DP |
SF48-1201400DP |
|
|
1.3A |
SF48-1001300DP |
SF48-1051300DP |
SF48-1101300DP |
SF48-1151300DP |
SF48-1201300DP |
SF48-1251300DP |
|
1.2A |
SF48-1001200DP |
SF48-1051200DP |
SF48-1101200DP |
SF48-1151200DP |
SF48-1201200DP |
SF48-1251200DP |
|
1.1A |
SF48-1001100DP |
SF48-1051100DP |
SF48-1101100DP |
SF48-1151100DP |
SF48-1201100DP |
SF48-1251100DP |
|
1.0A |
SF48-1001000DP |
SF48-1051000DP |
SF48-1101000DP |
SF48-1151000DP |
SF48-1201000DP |
SF48-1251000DP |
|
0.9A |
SF48-1000900DP |
SF48-1050900DP |
SF48-1100900DP |
SF48-1150900DP |
SF48-1200900DP |
SF48-1250900DP |
|
0.8A |
SF48-1000800DP |
SF48-1050800DP |
SF48-1100800DP |
SF48-1150800DP |
SF48-1200800DP |
SF48-1250800DP |
|
0.7A |
SF48-1000700DP |
SF48-1050700DP |
SF48-1100700DP |
SF48-1150700DP |
SF48-1200700DP |
SF48-1250700DP |
|
0.6A |
SF48-1000600DP |
SF48-1050600DP |
SF48-1100600DP |
SF48-1150600DP |
SF48-1200600DP |
SF48-1250600DP |
|
0.5A |
SF48-1000500DP |
SF48-1050500DP |
SF48-1100500DP |
SF48-1150500DP |
SF48-1200500DP |
SF48-1250500DP |
|
29V |
30V |
|
|
|
|
|
|
0.65A |
SF48-2900650DP |
SF48-3000650DP |
|
|
|
|
|
0.6A |
SF48-2900600DP |
SF48-3000600DP |
|
|
|
|
|
0.5A |
SF48-2900500DP |
SF48-3000500DP |
|
|
|
|
|
0.4A |
SF48-2900400DP |
SF48-3000400DP |
|
|
|
|
|
0.3A |
SF48-2900300DP |
SF48-3000300DP |
|
|
|
|
|
0.2A |
SF48-2900200DP |
SF48-3000200DP |
|
|
|
|
|
23V |
24V |
25V |
26V |
27V |
28V |
|
|
0.8A |
SF48-2300800DP |
SF48-2400800DP |
|
|
|
|
|
0.7A |
SF48-2300700DP |
SF48-2400700DP |
SF48-2500700DP |
SF48-2600700DP |
SF48-2700700DP |
|
|
0.65A |
SF48-2300650DP |
SF48-2400650DP |
SF48-2500650DP |
SF48-2600650DP |
SF48-2700650DP |
SF48-2800650DP |
|
0.6A |
SF48-2300600DP |
SF48-2400600DP |
SF48-2500600DP |
SF48-2600600DP |
SF48-2700600DP |
SF48-2800600DP |
|
0.5A |
SF48-2300500DP |
SF48-2400500DP |
SF48-2500500DP |
SF48-2600500DP |
SF48-2700500DP |
SF48-2800500DP |
|
0.4A |
SF48-2300400DP |
SF48-2400400DP |
SF48-2500400DP |
SF48-2600400DP |
SF48-2700400DP |
SF48-2800400DP |
|
0.3A |
SF48-2300300DP |
SF48-2400300DP |
SF48-2500300DP |
SF48-2600300DP |
SF48-2700300DP |
SF48-2800300DP |
|
0.2A |
SF48-2300200DP |
SF48-2400200DP |
SF48-2500200DP |
SF48-2600200DP |
SF48-2700200DP |
SF48-2800200DP |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
4.0A |
SF48-0104000DP |
SF48-0154000DP |
|
|
|
|
|
3.9A |
SF48-0103900DP |
SF48-0153900DP |
|
|
|
|
|
3.8A |
SF48-0103800DP |
SF48-0153800DP |
|
|
|
|
|
3.7A |
SF48-0103700DP |
SF48-0153700DP |
|
|
|
|
|
3.6A |
SF48-0103600DP |
SF48-0153600DP |
|
|
|
|
|
3.5A |
SF48-0103500DP |
SF48-0153500DP |
|
|
|
|
|
3.4A |
SF48-0103400DP |
SF48-0153400DP |
|
|
|
|
|
3.3A |
SF48-0103300DP |
SF48-0153300DP |
|
|
|
|
|
3.2A |
SF48-0103200DP |
SF48-0153200DP |
|
|
|
|
|
3.1A |
SF48-0103100DP |
SF48-0153100DP |
|
|
|
|
|
3.0A |
SF48-0103000DP |
SF48-0153000DP |
|
|
|
|
|
2.9A |
SF48-0102900DP |
SF48-0152900DP |
|
|
|
|
|
2.8A |
SF48-0102800DP |
SF48-0152800DP |
|
|
|
|
|
2.7A |
SF48-0102700DP |
SF48-0152700DP |
|
|
|
|
|
2.6A |
SF48-0102600DP |
SF48-0152600DP |
|
|
|
|
|
2.5A |
SF48-0102500DP |
SF48-0152500DP |
|
|
|
|
|
2.4A |
SF48-0102400DP |
SF48-0152400DP |
|
|
|
|
|
2.3A |
SF48-0102300DP |
SF48-0152300DP |
SF48-0202300DP |
SF48-0252300DP |
SF48-0302300DP |
SF48-0352300DP |
|
2.2A |
SF48-0102200DP |
SF48-0152200DP |
SF48-0202200DP |
SF48-0252200DP |
SF48-0302200DP |
SF48-0352200DP |
|
2.1A |
SF48-0102100DP |
SF48-0152100DP |
SF48-0202100DP |
SF48-0252100DP |
SF48-0302100DP |
SF48-0352100DP |
|
2.0A |
SF48-0102000DP |
SF48-0152000DP |
SF48-0202000DP |
SF48-0252000DP |
SF48-0302000DP |
SF48-0352000DP |
|
1.9A |
SF48-0101900DP |
SF48-0151900DP |
SF48-0201900DP |
SF48-0251900DP |
SF48-0301900DP |
SF48-0351900DP |
|
1.8A |
SF48-0101800DP |
SF48-0151800DP |
SF48-0201800DP |
SF48-0251800DP |
SF48-0301800DP |
SF48-0351800DP |
|
1.7A |
SF48-0101700DP |
SF48-0151700DP |
SF48-0201700DP |
SF48-0251700DP |
SF48-0301700DP |
SF48-0351700DP |
|
1.6A |
SF48-0101600DP |
SF48-0151600DP |
SF48-0201600DP |
SF48-0251600DP |
SF48-0301600DP |
SF48-0351600DP |
|
1.5A |
SF48-0101500DP |
SF48-0151500DP |
|
|
SF48-0301500DP |
SF48-0351500DP |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
2.3A |
SF48-0402300DP |
SF48-0402300DP |
|
|
|
|
|
2.2A |
SF48-0402200DP |
SF48-0452200DP |
SF48-0502200DP |
SF48-0552200DP |
SF48-0602200DP |
SF48-0652200DP |
|
2.1A |
SF48-0402100DP |
SF48-0452100DP |
SF48-0502100DP |
SF48-0552100DP |
SF48-0602100DP |
SF48-0652100DP |
|
2.0A |
SF48-0402000DP |
SF48-0452000DP |
SF48-0502000DP |
SF48-0552000DP |
SF48-0602000DP |
SF48-0652000DP |
|
1.9A |
SF48-0401900DP |
SF48-0451900DP |
SF48-0501900DP |
SF48-0551900DP |
SF48-0601900DP |
SF48-0651900DP |
|
1.8A |
SF48-0401800DP |
SF48-0451800DP |
SF48-0501800DP |
SF48-0551800DP |
SF48-0601800DP |
SF48-0651800DP |
|
1.7A |
SF48-0401700DP |
SF48-0451700DP |
SF48-0501700DP |
SF48-0551700DP |
SF48-0601700DP |
SF48-0651700DP |
|
1.6A |
SF48-0401600DP |
SF48-0451600DP |
SF48-0501600DP |
SF48-0551600DP |
SF48-0601600DP |
SF48-0651600DP |
|
1.5A |
SF48-0401500DP |
SF48-0451500DP |
SF48-0501500DP |
SF48-0551500DP |
SF48-0601500DP |
SF48-0651500DP |
|
1.4A |
SF48-0401400DP |
SF48-0451400DP |
SF48-0501400DP |
SF48-0551400DP |
SF48-0601400DP |
SF48-0651400DP |
|
1.3A |
|
|
SF48-0501300DP |
SF48-0551300DP |
SF48-0601300DP |
SF48-0651300DP |
|
1.2A |
|
|
SF48-0501200DP |
SF48-0551200DP |
SF48-0601200DP |
SF48-0651200DP |
|
1.1A |
|
|
|
SF48-0551100DP |
SF48-0601100DP |
SF48-0651100DP |
|
1.0A |
|
|
|
|
SF48-0601000DP |
SF48-0651000DP |
|
0.9A |
|
|
|
|
|
SF48-0650900DP |
|
13V |
13.5V |
14V |
14.5V |
15V |
16V |
|
|
1.2A |
SF48-1301200DP |
SF48-1351200DP |
|
|
|
|
|
1.1A |
SF48-1301100DP |
SF48-1351100DP |
SF48-1401100DP |
SF48-1451100DP |
SF48-1501100DP |
|
|
1.0A |
SF48-1301000DP |
SF48-1351000DP |
SF48-1401000DP |
SF48-1451000DP |
SF48-1501000DP |
SF48-1601000DP |
|
0.9A |
SF48-1300900DP |
SF48-1350900DP |
SF48-1400900DP |
SF48-1450900DP |
SF48-1500900DP |
SF48-1600900DP |
|
0.8A |
SF48-1300800DP |
SF48-1350800DP |
SF48-1400800DP |
SF48-1450800DP |
SF48-1500800DP |
SF48-1600800DP |
|
0.7A |
SF48-1300700DP |
SF48-1350700DP |
SF48-1400700DP |
SF48-1450700DP |
SF48-1500700DP |
SF48-1600700DP |
|
0.6A |
SF48-1300600DP |
SF48-1350600DP |
SF48-1400600DP |
SF48-1450600DP |
SF48-1500600DP |
SF48-1600600DP |
|
0.5A |
SF48-1300500DP |
SF48-1350500DP |
SF48-1400500DP |
SF48-1450500DP |
SF48-1500500DP |
SF48-1600500DP |
|
0.4A |
SF48-1300400DP |
SF48-1350400DP |
SF48-1400400DP |
SF48-1450400DP |
SF48-1500400DP |
SF48-1600400DP |
|
0.3A |
|
|
|
|
|
SF48-1600300DP |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
2.2A |
SF48-0702200DP |
|
|
|
|
|
|
2.1A |
SF48-0702100DP |
SF48-0752100DP |
|
|
|
|
|
2.0A |
SF48-0702000DP |
SF48-0752000DP |
|
|
|
|
|
1.9A |
SF48-0701900DP |
SF48-0751900DP |
SF48-0801900DP |
|
|
|
|
1.8A |
SF48-0701800DP |
SF48-0751800DP |
SF48-0801800DP |
SF48-0851800DP |
|
|
|
1.7A |
SF48-0701700DP |
SF48-0751700DP |
SF48-0801700DP |
SF48-0851700DP |
SF48-0901700DP |
|
|
1.6A |
SF48-0701600DP |
SF48-0751600DP |
SF48-0801600DP |
SF48-0851600DP |
SF48-0901600DP |
SF48-0951600DP |
|
1.5A |
SF48-0701500DP |
SF48-0751500DP |
SF48-0801500DP |
SF48-0851500DP |
SF48-0901500DP |
SF48-0951500DP |
|
1.4A |
SF48-0701400DP |
SF48-0751400DP |
SF48-0801400DP |
SF48-0851400DP |
SF48-0901400DP |
SF48-0951400DP |
|
1.3A |
SF48-0701300DP |
SF48-0751300DP |
SF48-0801300DP |
SF48-0851300DP |
SF48-0901300DP |
SF48-0951300DP |
|
1.2A |
SF48-0701200DP |
SF48-0751200DP |
SF48-0801200DP |
SF48-0851200DP |
SF48-0901200DP |
SF48-0951200DP |
|
1.1A |
SF48-0701100DP |
SF48-0751100DP |
SF48-0801100DP |
SF48-0851100DP |
SF48-0901100DP |
SF48-0951100DP |
|
1.0A |
SF48-0701000DP |
SF48-0751000DP |
SF48-0801000DP |
SF48-0851000DP |
SF48-0901000DP |
SF48-0951000DP |
|
0.9A |
SF48-0700900DP |
SF48-0750900DP |
SF48-0800900DP |
SF48-0850900DP |
SF48-0900900DP |
SF48-0950900DP |
|
0.8A |
SF48-0700800DP |
SF48-0750800DP |
SF48-0800800DP |
SF48-0850800DP |
SF48-0900800DP |
SF48-0950800DP |
|
0.7A |
|
|
SF48-0800700DP |
SF48-0850700DP |
SF48-0900700DP |
SF48-0950700DP |
|
0.6A |
|
|
|
SF48-0850600DP |
SF48-0900600DP |
SF48-0950600DP |
|
0.5A |
|
|
|
|
|
SF48-0950500DP |
 |
 |
 |
 |
 |
 |
